🧪 RFID Advisor Certified Lab Test
Laboratory Test Report & Certification
Field measurement results and real-world read range trials conducted by our engineering team.
RFID Advisor - Hard Tag
On-Metal: Yes (Certified)
IP65
AS 8620
Code: RADV_ATOM_K862
Official RFID Advisor Score
★
10,0
out of 10 points
Product Technical Specifications
Dimensions
86 x 20 x 12 mm
Weight
13,0 g
Read Range (Datasheet)
10,00 m
Frequency
UHF 860 - 960 MHz
Chip / IC
Impinj M730
Memory
EPC: 128b | User: 0b
Operating Temp.
-40°C / 85°C
Survival Temp.
-40°C / 100°C
Body Material
Custom-made
Form Factor
Hard tag
Mounting
Adhesive, Rivet, Magnet
Colors
Gray, Personalizzato
Standards & Certifications:
ISO 18000-6C
EPCglobal Class 1 Gen 2
Read Range Benchmarks
Comparison: Datasheet claims vs Real Tests
Manufacturer Claim
Manufacturer Datasheet
Theoretical read distance stated in the manufacturer datasheet.
10,0
meters
Handheld reader
Lab Test
Handheld
Test performed with an ETSI-band reader at 33 dBm
17,0
meters
Technical Report & Lab Notes
Details on experimental setup, tested materials and tag behavior
Tags for surprising metal, constant reading up to 15/17 meters, then it has a reading "hole", but surprisingly it starts reading again after 20 meters and reaches up to 27!
Pretty good and durable adhesive even on metal

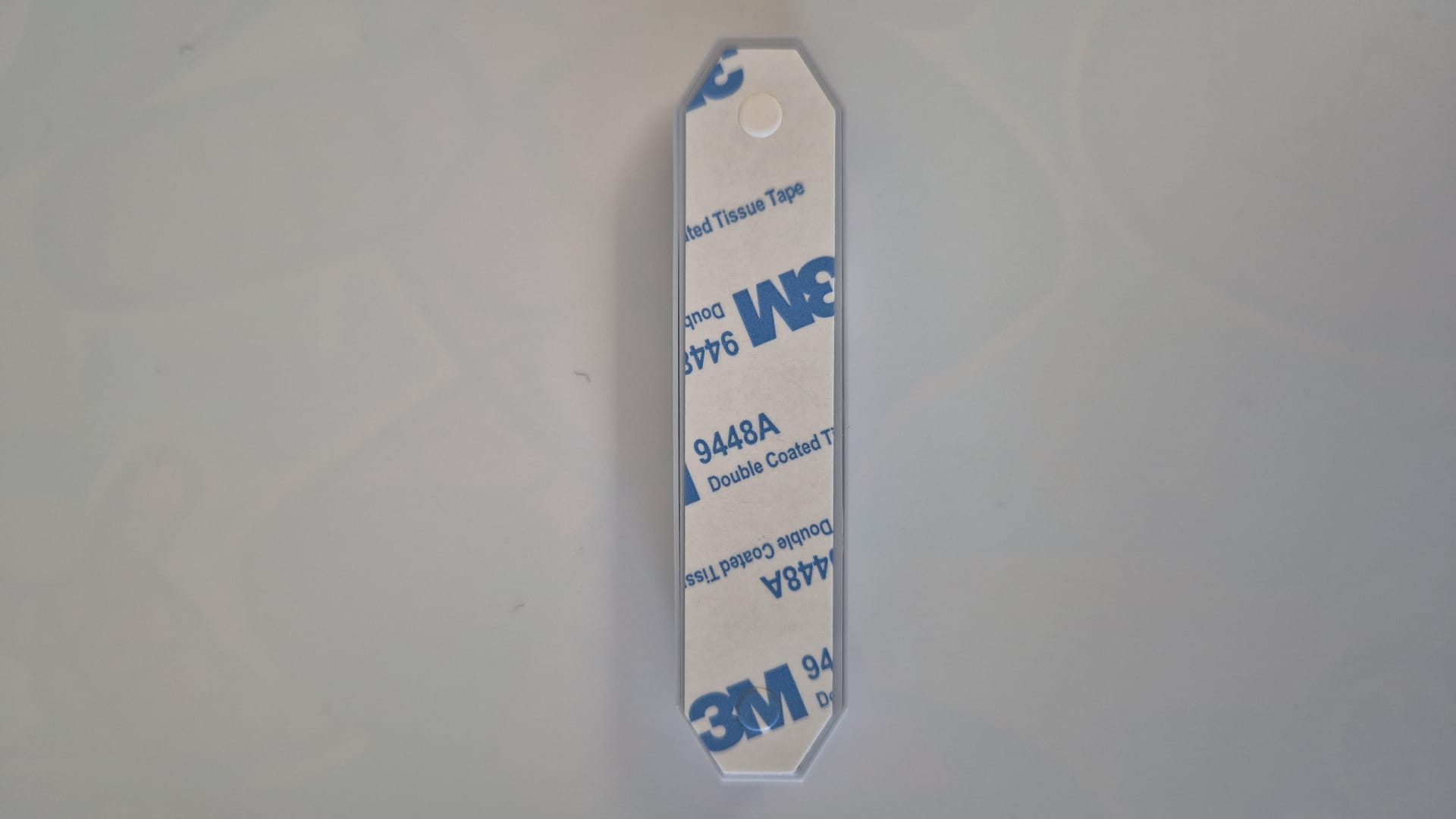

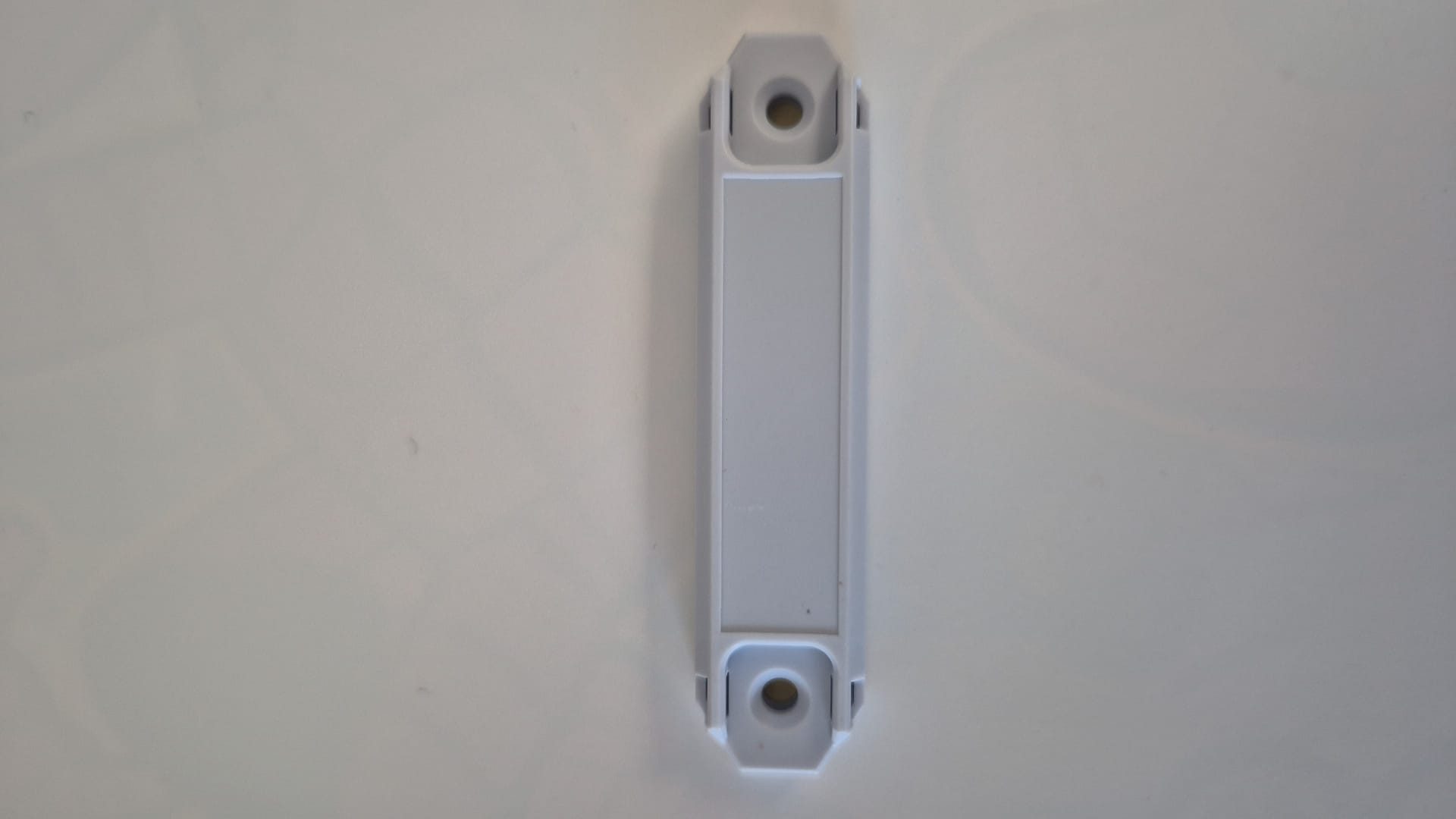

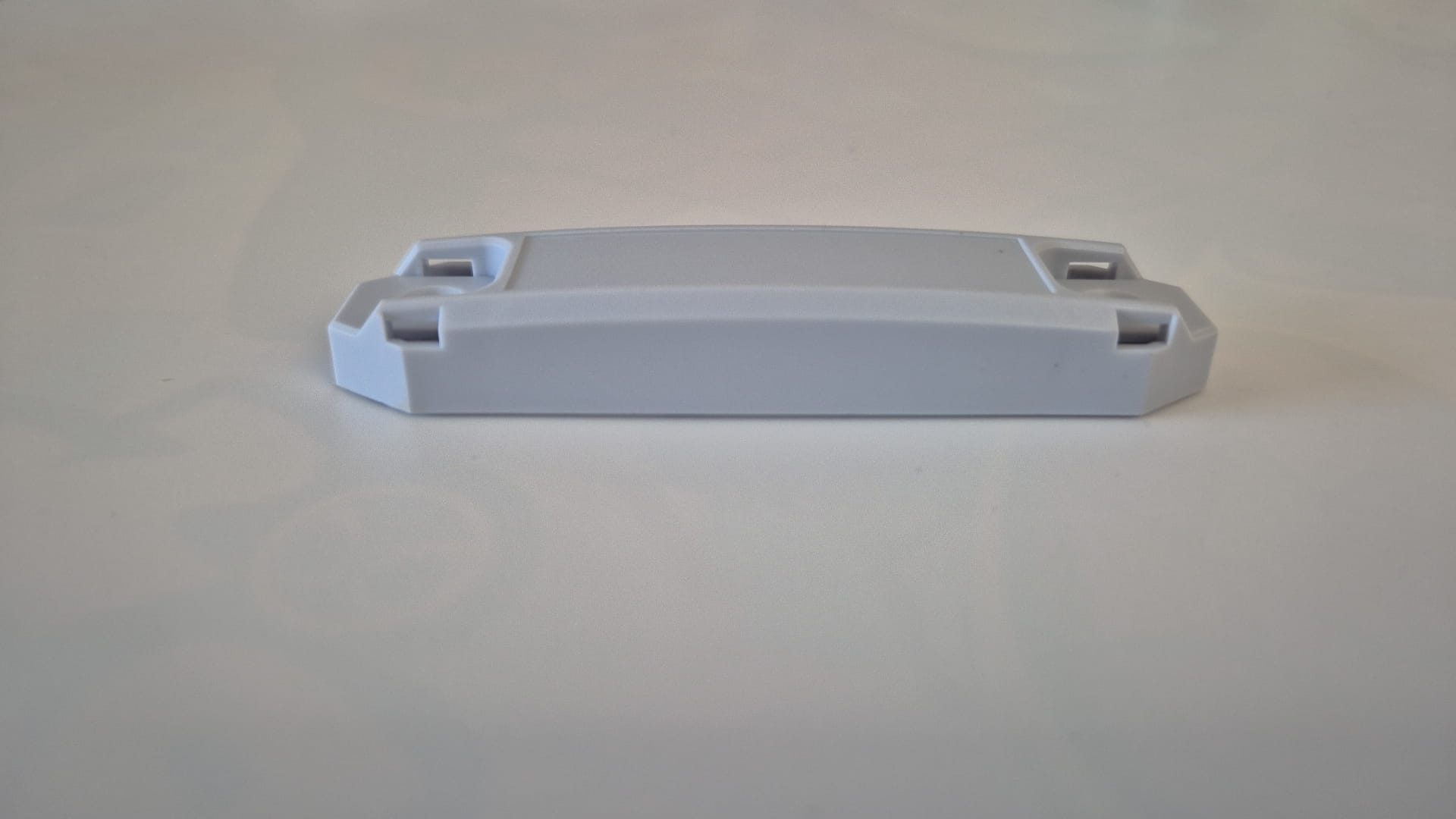

Test Photo Gallery
Photographs captured during measurement sessions and sample placement
Demonstration Videos
Recordings of live read range test sessions
Trial Video #1
