Laboratory Test Report & Certification
Field measurement results and real-world read range trials conducted by our engineering team.
AS 03515
Product Description
180℃ long-term operation (Constant Temperature) 210℃ operation time 3H (Constant Temperature) 230℃ operation time 45 min (Constant Temperature) 250° Duration 6-10 min (Constant Temperature)
Product Technical Specifications
Read Range Benchmarks
Comparison: Datasheet claims vs Real TestsManufacturer Datasheet
Theoretical read distance stated in the manufacturer datasheet.
Handheld
Test performed with an ETSI-band reader at 30 dBm
Technical Report & Lab Notes
Details on experimental setup, tested materials and tag behavior
Test with portable device
Test on wood
The tag was applied to inert material (wood) in both positions, vertical and horizontal — the position does not affect the reading.
With the portable device set to the maximum power allowed by ETSI regulations, the reading distance reaches approximately 130–140 cm.
Test on aluminum bar
By applying the tag to an aluminum panel, the reading distance with the portable device (“gun”) increases up to 270–280 cm.
Test with fixed reader
Not available.

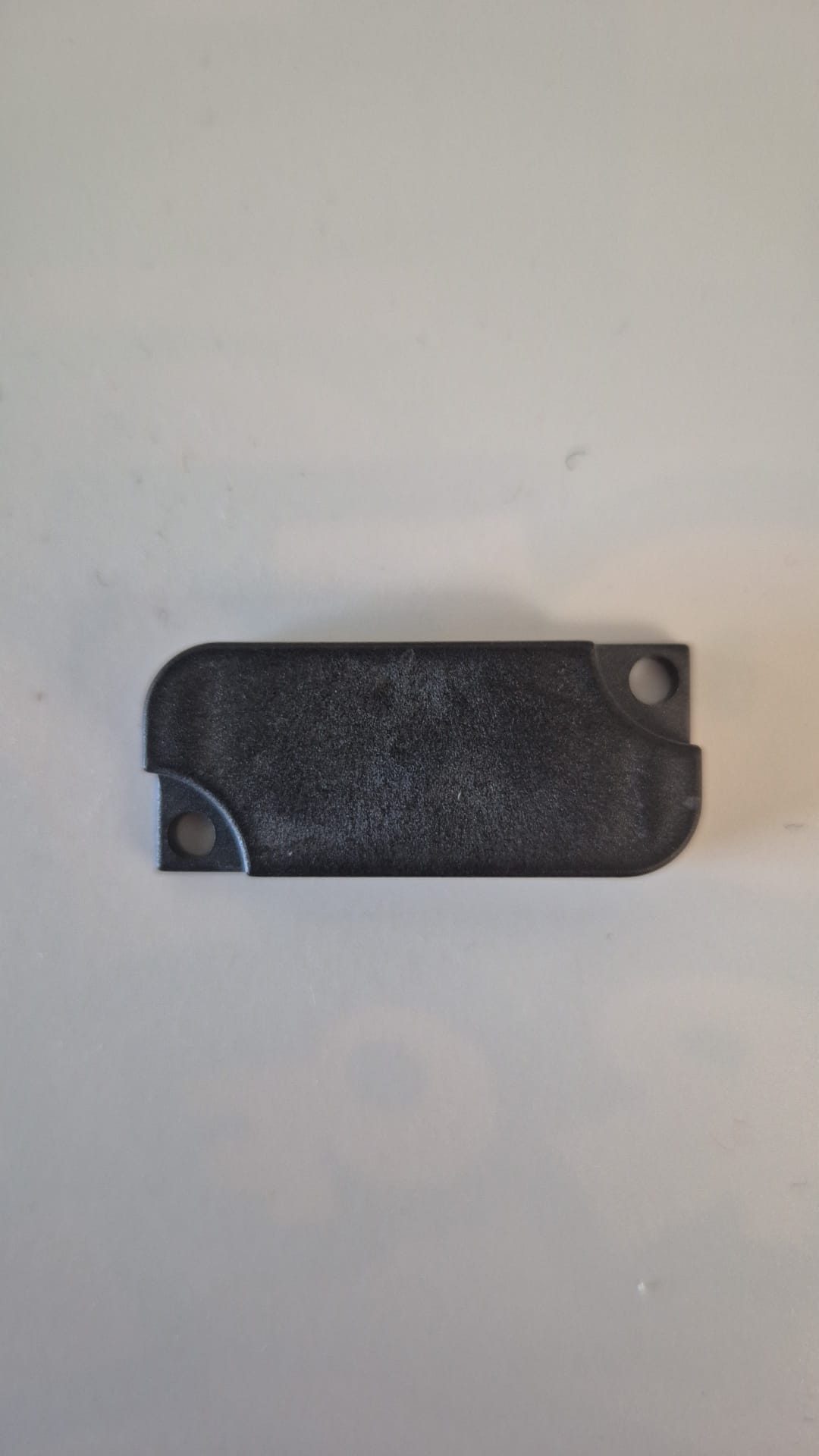

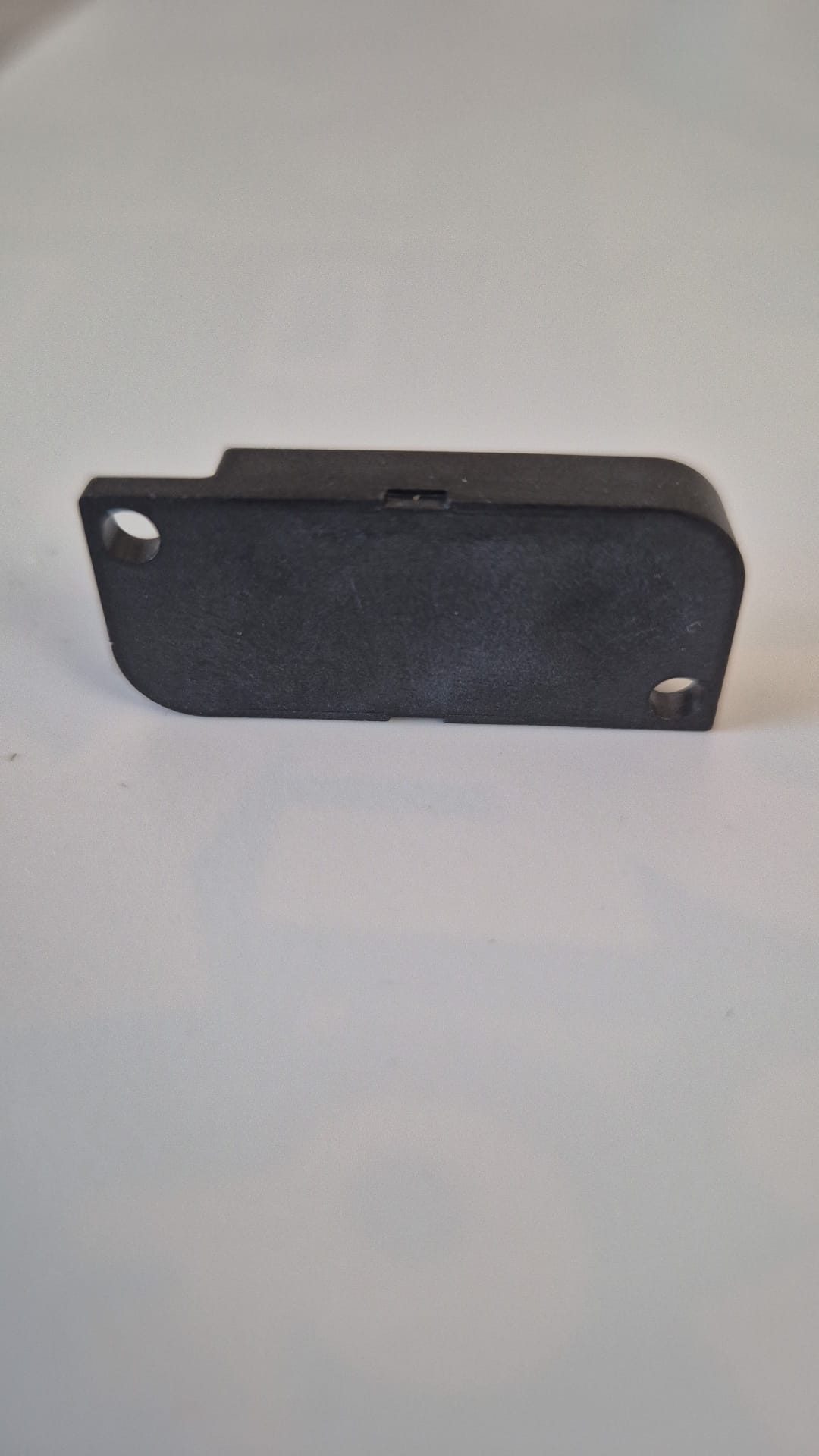

Test Photo Gallery
Photographs captured during measurement sessions and sample placement
Demonstration Videos
Recordings of live read range test sessions
